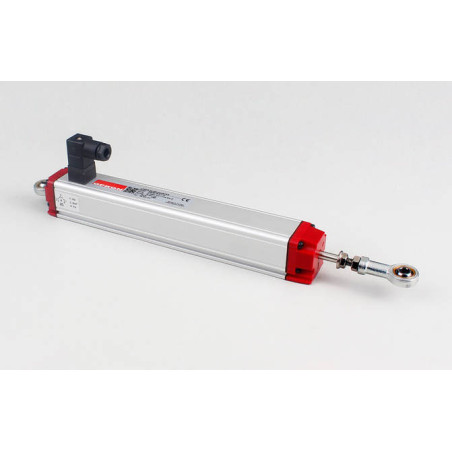

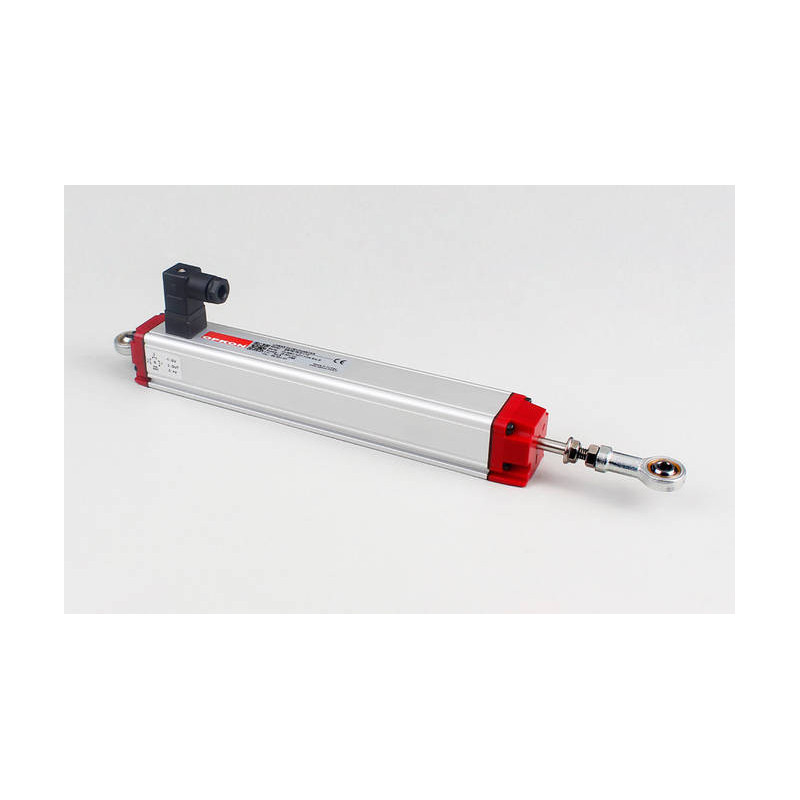

Linear Potentiometers OPKON ERTM Series (Analog Output, 50–600 mm)

Linear Potentiometers OPKON ERTM Series (Analog Output, 50–600 mm)

Reliable Linear Position Transducers for Precision Measurement

Linear potentiometers are displacement transducers that convert the linear movement of a shaft (or rod) into an electrical signal representing its position.
These devices — also known as linear position sensors or potentiometric rulers — enable accurate position measurement of moving parts within a defined stroke range.

Their working principle is based on voltage division across a hybrid conductive film, ensuring high linearity and long-term operational stability.
OPKON ERTM potentiometers feature a rugged design, suitable for continuous industrial use, with multiple housing and mounting options to fit various applications.

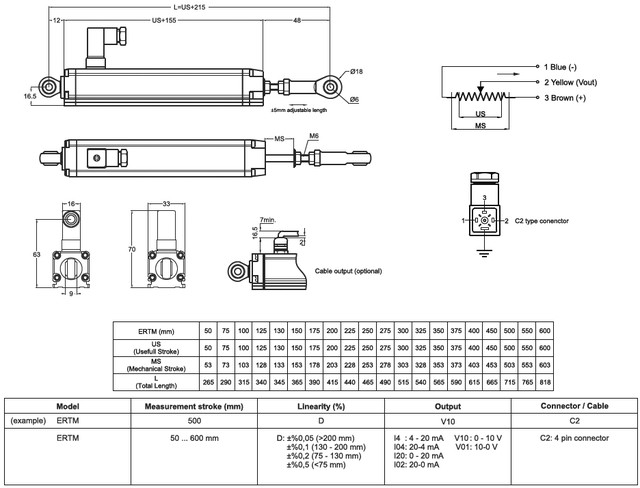

Main Features – OPKON ERTM Series

• Device type: Linear potentiometer (position transducer) with inverted analog output

• Measuring range: 50 – 600 mm

• Analog output options:
  – 4–20 mA or 0–10 V (standard)
  – 20–4 mA or 10–0 V (inverted)

• Highly stable output signal

• Very low temperature drift

• Excellent repeatability and reliability

• Durable construction for industrial environments

Recommended Applications

Perfect for:

• Industrial automation and motion control systems

• Hydraulic and pneumatic cylinders for stroke feedback

• Machine tools and presses

• Robotics and testing benches

• Injection molding machines and linear actuators
