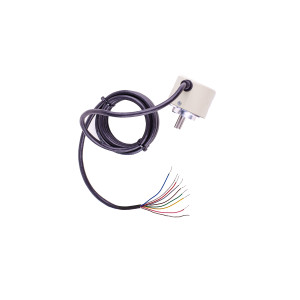

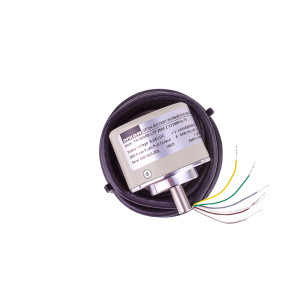

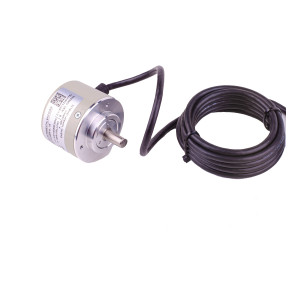

Rotary Incremental Encoder MRI 40A

Rotary Incremental Encoder MRI 40A

Reliable magnetic incremental encoder designed for precise speed and position control in industrial automation. The non-contact magnetic measuring system ensures long-term durability and high signal stability even under demanding environmental conditions.

Key Specifications:

• Measurement type: magnetic incremental, non-contact

• Case diameter: Ø 40 mm (aluminium / steel)

• Shaft diameter: Ø 4 / 6 / 8 mm (stainless steel)

• Resolution: 4 – 1024 pulses per revolution (ppr)

• Output channels: A, B, Z (or AA, BB, ZZ)

• Output type: Push-Pull, TTL, Linedriver, High Linedriver

• Power supply: 8 – 24 V DC (standard) or 5 V DC (optional)

• Power consumption: < 40 mA (at 24 V DC)

• Max speed: 3500 rpm

• Max shaft load: Radial 100 N / Axial 60 N

• Protection class: IP 54

• Operating temperature: −20 °C … +80 °C

Features & Benefits:

• Compact Ø 40 mm housing

• High precision and durability

• IP 54 protection against dust and splashes

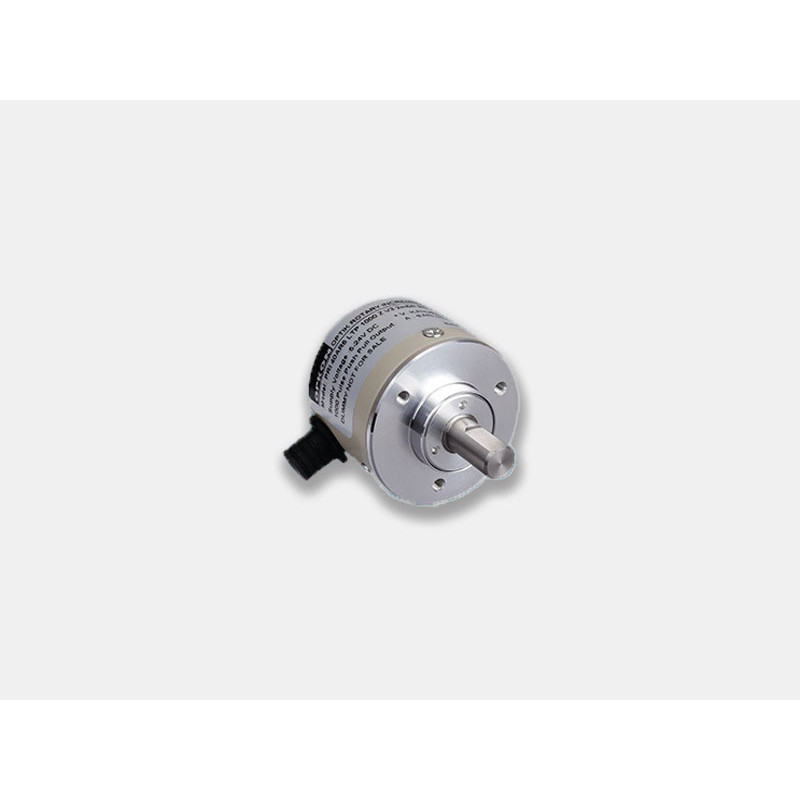

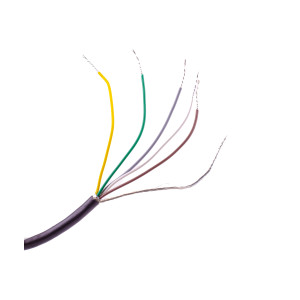

• Flexible connection options (2.5–10 m cable or 12-pin connector)

• Ideal for a wide range of industrial automation applications
