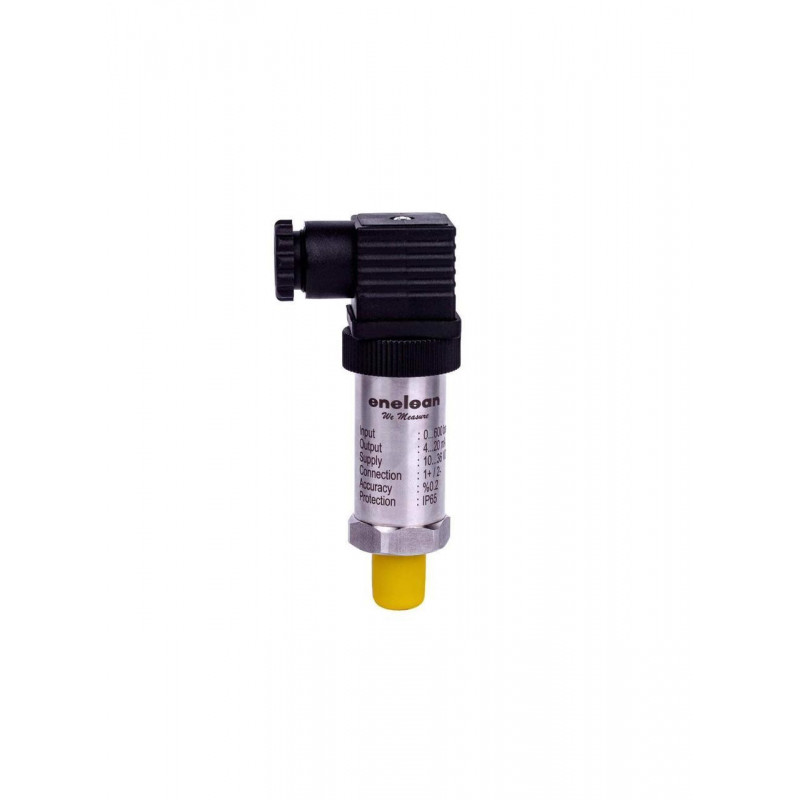

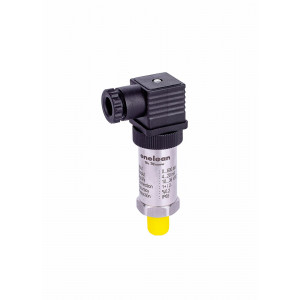

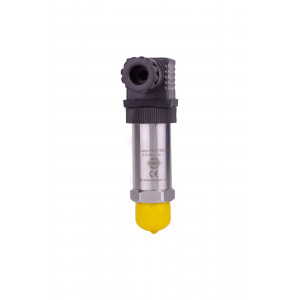

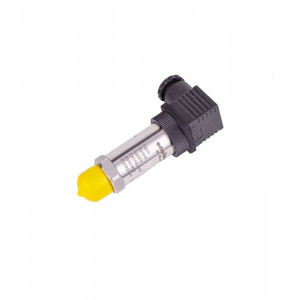

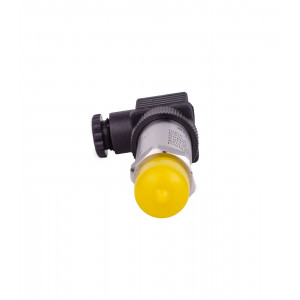

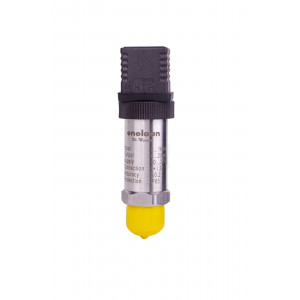

Pressure sensor series P-01 0...60 Bar, 4-20 mA, G1/2", ETRANS

The ETRANS-P01 pressure transmitter with a ceramic measuring cell is designed for pressure measurement in gases, steam, and liquids. It is a cost-effective solution for pressure monitoring across various industrial sectors.

The ETRANS-P01 model for general industrial applications stands out not only due to its compact design, but also for its excellent quality at a highly competitive price.

A pressure sensor (or transmitter) converts the physical quantity “pressure” into a standardized industrial signal. In addition to a wide range of sensors for general industry, we also offer specialized versions for:

• Refrigeration and HVAC systems

• Food processing industry

• Mobile machinery

• Medical gases

• Semiconductor manufacturing

📊 Extended Specifications

• Measuring Range Options: –1...+1000 bar

• Measurement Accuracy: < 0.2 %

• Output Signals Available:
  – 4...20 mA
  – 4...20 mA / HART
  – 0...10 V
  – 0–5 V
  – RS485

• Process Connection Threads:
  – G1/4", G1/2", G1",
  – G1/2" flush diaphragm, G1" flush diaphragm

• Process Temperature: –40...+135 °C

• Ambient, Storage, and Transport Temperature: –25...+85 °C

• Supply Voltage: 10...36 V DC

• Protection Class: up to IP67
