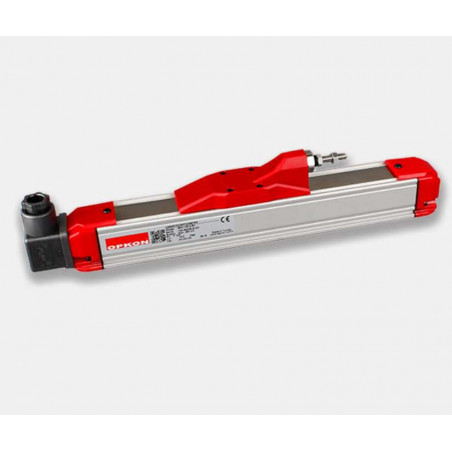

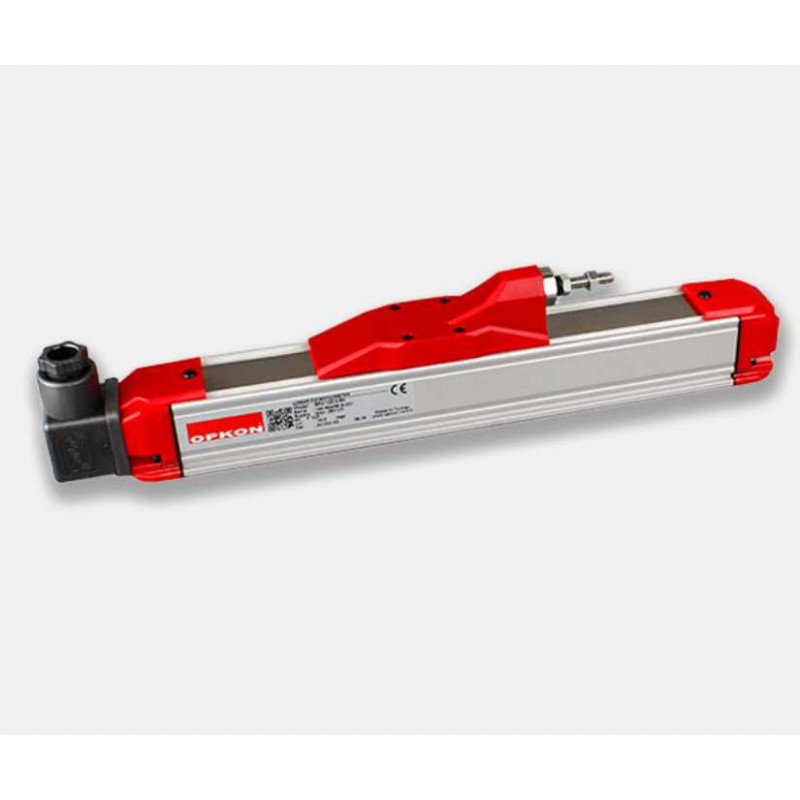

Linear displacement sensor RPH, Opcon

The RPH linear position sensor is engineered for precise displacement measurement in industrial automation systems. With a measuring range of 100 to 1950 mm, it offers high repeatability (<0.01 mm) and exceptional mechanical durability of up to 100 million cycles. The sensor features a detachable 4-pin connector, spherical joint mounting, and a rugged anodized aluminum housing.
Selectable output resistance options (5 kΩ / 10 kΩ / 20 kΩ) make it suitable for a wide variety of applications.

Technical Specifications:

• Measuring Range: 100–1950 mm

• Accuracy:
  ±0.05% (200–600 mm)
  ±0.1% (130–200 mm)
  ±0.2% (75–130 mm)
  ±0.5% (50–75 mm)

• Repeatability: 0.01 mm

• Output Signal:
  5 kΩ (100–600 mm)
  10 kΩ (650–1000 mm)
  20 kΩ (1250–1950 mm)

• Supply Voltage: up to 28 V DC

• Connection Type: detachable 4-pin connector

• Max Travel Speed: up to 5 m/s

• Mechanical Lifespan: 100 million cycles

• Housing: anodized aluminum, Ø38 mm

• Rod: stainless steel, Ø10 mm

• Mounting Type: spherical joint

• Protection Class: IP65

• Operating Temperature: –20°C to +80°C

• Storage Temperature: –30°C to +90°C
