Linear displacement sensor LPC, Opcon

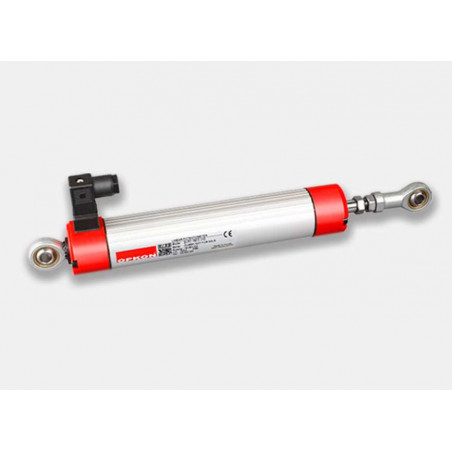

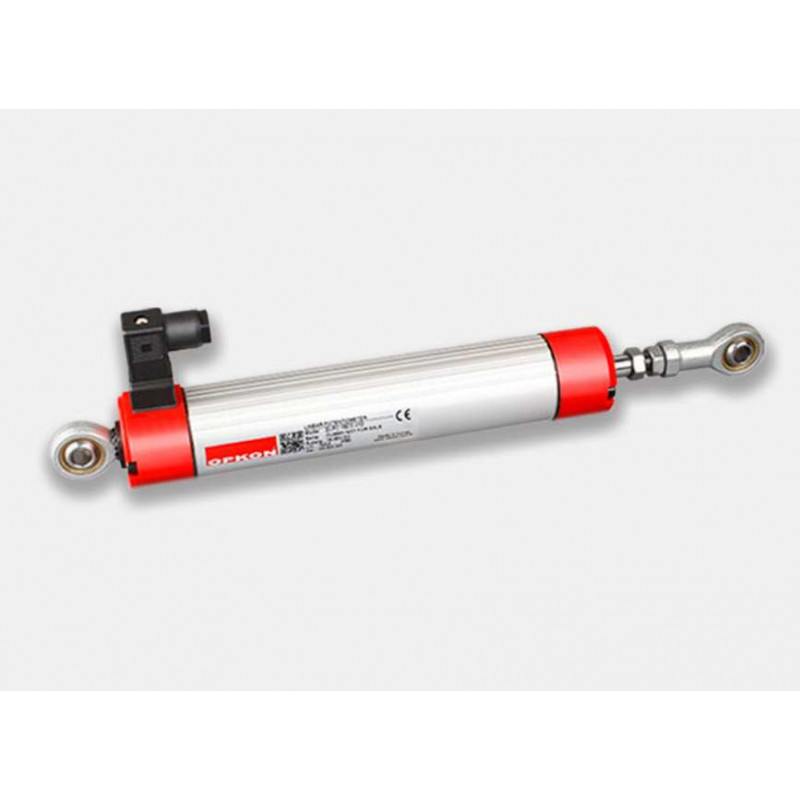

The LPC linear position sensor is designed for precise measurement of displacement within a range of 50 to 750 mm. Equipped with spherical rod ends for easy installation and a 10 mm stainless steel rod, it ensures high repeatability of the output signal. Its anodized aluminum cylindrical housing and IP65 protection rating make it ideal for industrial automation, machinery, and motion control systems, even in demanding environments. With a mechanical lifespan of up to 100 million cycles, this sensor offers both reliability and durability.

Technical Specifications:

• Measuring Range: 50–750 mm

• Accuracy:
  ±0.05% (200–600 mm)
  ±0.1% (130–200 mm)
  ±0.2% (75–130 mm)
  ±0.5% (50–75 mm)

• Repeatability: 0.01 mm

• Output Signal:
  5 kΩ (for 50–600 mm)
  10 kΩ (for 650–750 mm)

• Supply Voltage: up to 28 V DC

• Connection Type: Detachable connector, 4 pins

• Maximum Travel Speed: up to 5 m/s

• Mechanical Life: 100,000,000 cycles

• Housing Material: Anodized aluminum

• Rod Material: Stainless steel

• Housing Diameter: 38 mm

• Rod Diameter: 10 mm

• Mounting Type: Spherical joint

• Protection Class: IP65

• Operating Temperature: –20°C to +80°C

• Storage Temperature: –30°C to +90°C
