Main attributes
Country of manufacture
Turkey
Manufacturer
Enelsan
Condition
New
User characteristics
Minimum operating voltage
10 V
Housing material
316L stainless steel
Protection degree, IP
68
Measurement error
0.3 %
Housing size
170 mm
Maximum operating temperature
70 degrees
Output signal type
4…20 mA
Maximum operating voltage
36 V
Controlled medium
Liquid
Cable length
1.5
Pressure type
Absolute
Maximum ambient temperature
70 degrees
Output signal type
Analog
Measurement range
0...150 mBar
Membrane material
316L stainless steel

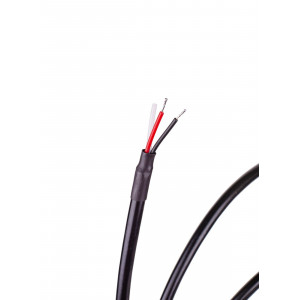

Cable outlet
Polyurethane cable sheath
Housing diameter
27 mm
Measuring materials
Liquids
Measurement type
Hydrostatic
Measured quantity
Level
Measurement range - 0...150 mBar
For simple measurements

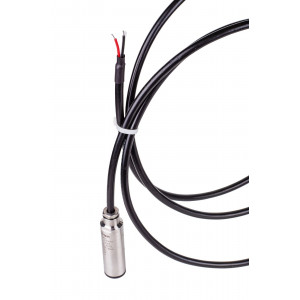

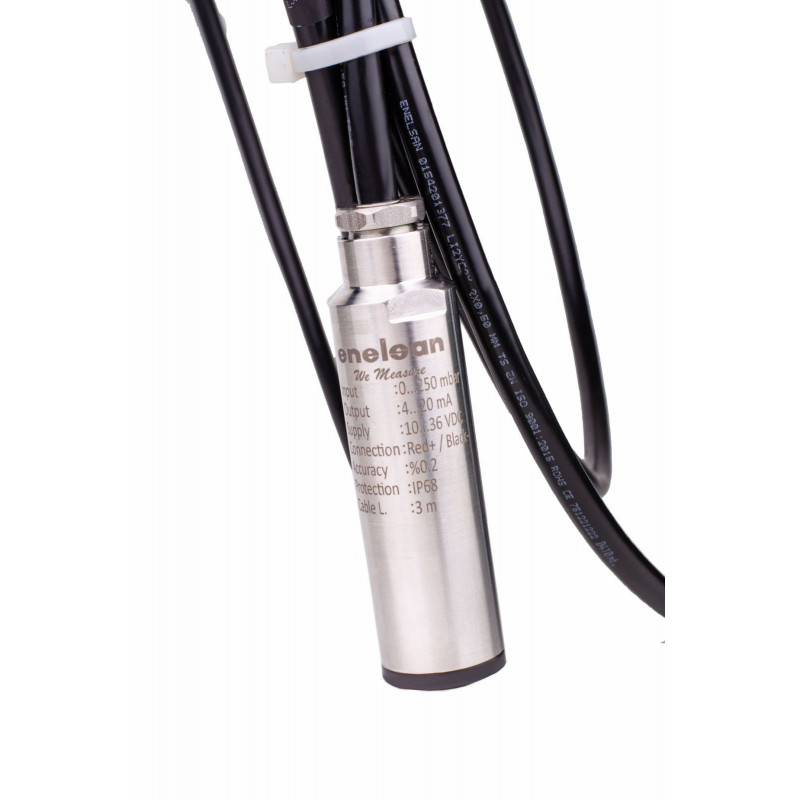

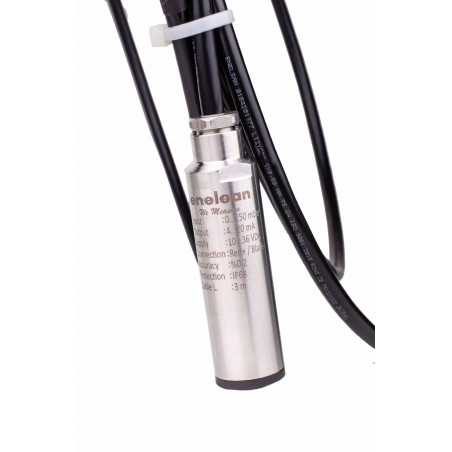

The ETRANS-L01 submersible pressure transducers are specially designed for simple liquid level measurements. They are distinguished by excellent quality, reliability and cost-effectiveness.
Submersible pressure transducers are used for level measurement in open water bodies, wells, sumps and tanks. In particular, immersion pressure transducers are highly reliable when measuring levels in the field of water treatment and wastewater treatment, as well as storing liquids, such as fuel in oil storage tanks and at gas stations.
The sensors of this model are designed in accordance with modern industrial requirements and have the following characteristics: output signal - standard 4...20 mA, error - 0.3%, cables with polyurethane sheath. The IP68 housing protection degree ensures the possibility of continuous operation of the devices under pressure up to 150 m of water column.
Level probe applications
Level or depth measurement
Pump protection
Level measurement in rivers and lakes
Level measurement in vessels and storage systems
Level control of wastewater and pumping stations
Monitoring of wastewater. treatment and control of stormwater basins
Level probe features
Durable
Reliable
Economical
