Ditron DC11 optical ruler

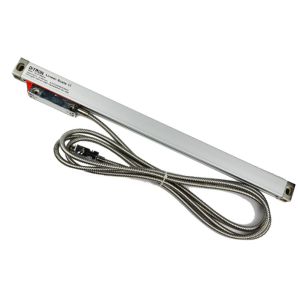

Optical Scale Ditron DC11 — Professional Linear Displacement Converter

The Ditron DC11 optical scale is a professional linear displacement converter designed for upgrading lathes, milling, and boring machines.

Installing the DC11 together with a digital readout (DRO) system allows you to:

• Increase machining accuracy up to 0.001 mm.

• Eliminate the effect of backlash in screw pairs.

• Ensure stable repeatability of dimensions.

• Significantly speed up the operator’s workflow.

This model is ideal for machines requiring maximum positioning accuracy — toolroom lathes, coordinate boring machines, and precision milling machines.

🔑 Key Advantages of DC11

• Resolution 1 μm — perfect for high-precision operations.

• IP55 protection — housing is resistant to dust, chips, and coolant.

• Smooth travel — reading head with 5 bearings ensures stable signal.

• Reliability — long service life under intensive loads.

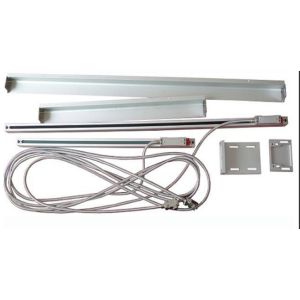

• Complete set — scale, aluminum cover, armored cable, mounting kit.

⚙️ Technical Applications

• High-precision lathes (e.g., 16K20, 1K62).

• Coordinate boring machines.

• Toolroom milling centers.

• Any equipment requiring micron-level accuracy.

✅ Why Buy from ASU

• Official Ditron supplier in Ukraine.

• Professional selection of scales for specific machines.

• Warranty and service support.

• Fast replacement if needed.

🔟 10 Highlights of DC11

1. Accuracy of 1 μm — ideal for toolmaking.

2. Compatibility with popular machines — lathes (16K20, 1K62), milling (6R12, 6R82), boring (2A450), grinding (3L722).

3. IP55 protection — works even in environments with dust, chips, and coolant.

4. Reliable 5-bearing head — stable signal without failures.

5. Universal interfaces — TTL and RS422 for any DRO system.

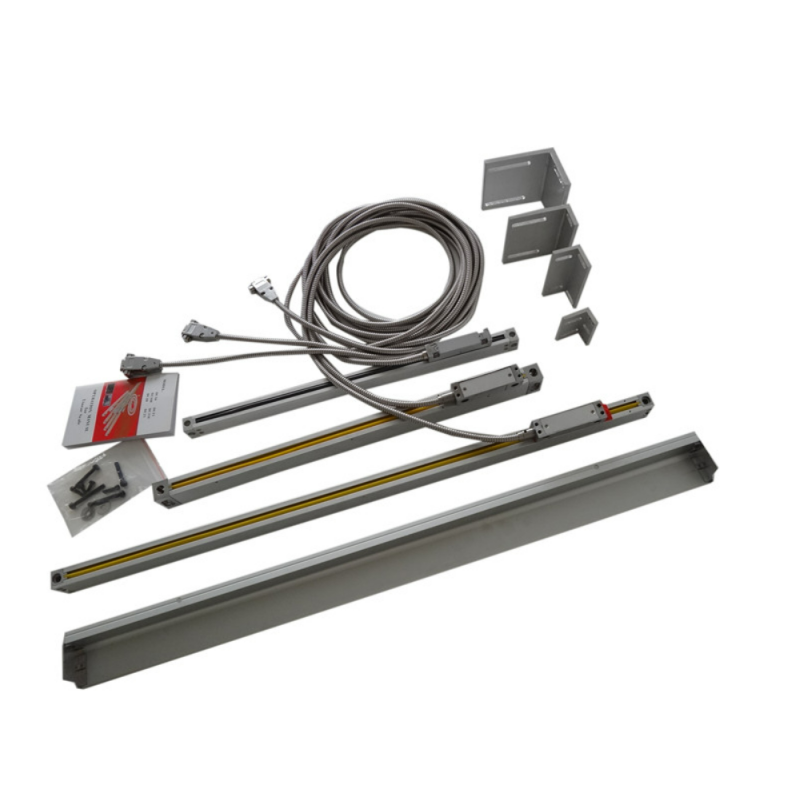

6. Complete set — scale, cover, armored cable, mounting kit.

7. Easy installation — suitable for retrofitting older machines without complex adjustments.

8. High repeatability — eliminates screw backlash, ensures stable dimensions.

9. Official warranty — supplied by Automation Service Ukraine, full service support.

10. Optimal price-to-quality ratio — professional precision at an affordable cost.

📌 How to Select DC11

• Determine the working stroke of your machine.

• Add 138 mm to the stroke — this is the total scale length.

• Ensure there is space for the protective cover.

• Choose the required signal type (TTL or RS422).

🎯 Typical Applications

• Lathes: 16K20, 1K62, TV-6, TV-7.

• Milling machines: 6R12, 6R82, 6T12.

• Coordinate boring machines: 2A450, 2780.

• Grinding machines: 3L722, 3L722V.

• Any equipment requiring micron-level precision.
