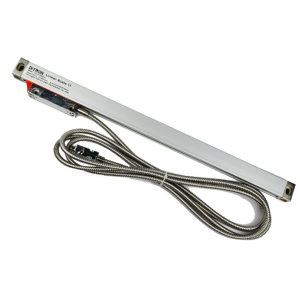

Ditron DC11F ultra‑thin optical scales are professional linear displacement converters designed for machine tools where installation space is limited but micron‑level precision is required.

The DC11F combines 1 μm resolution with an ultra‑slim body, making it easy to install even in narrow areas. With IP55 protection, it operates reliably in environments with dust, chips, and coolant. The reading head with 5 bearings ensures stable signal transmission and long service life.

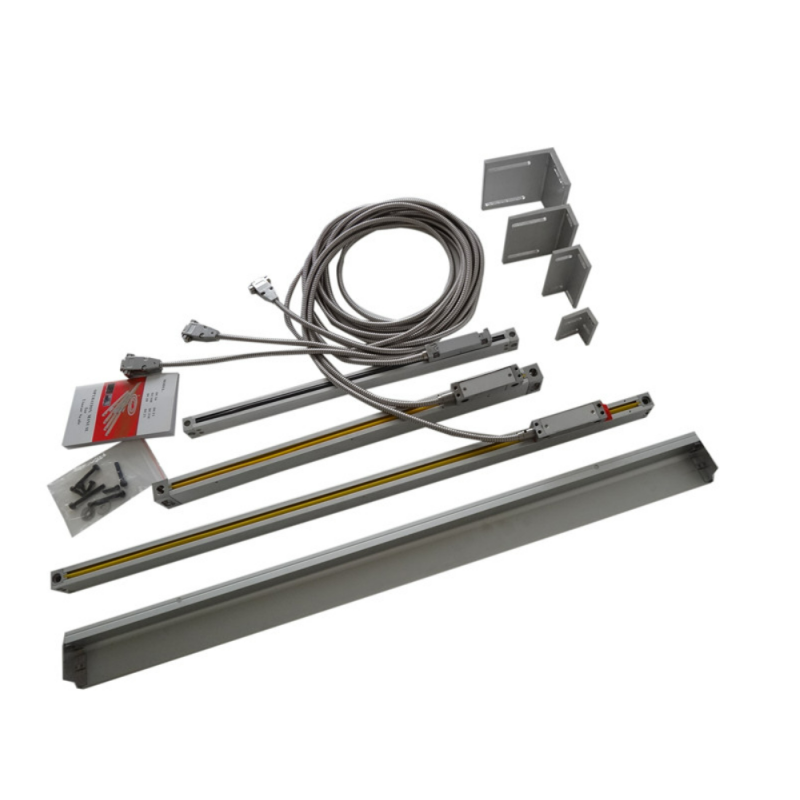

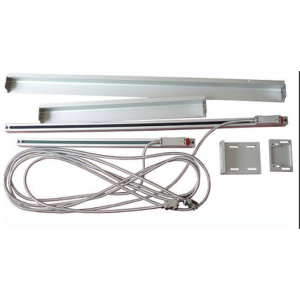

Package contents: scale, aluminum protective cover, armored cable, and mounting kit. The scales support TTL and RS422 interfaces, ensuring compatibility with most DRO systems.

📌 Applications of DC11F

• Precision lathes (16K20, 1K62, TV‑6, TV‑7).

• Milling centers (6R12, 6R82, 6T12).

• Coordinate boring machines (2A450, 2780).

• Grinding machines (3L722, 3L722V).

• Any equipment requiring micron accuracy in limited space.

🔑 Advantages of DC11F

• Ultra‑thin body — easy installation in tight spaces.

• 1 μm resolution — benchmark precision.

• IP55 protection — resistant to dust, chips, and coolant.

• Stable signal — 5‑bearing reading head.

• Complete package for quick installation.

• Official warranty and service from Automatic Service Ukraine.

🛠 How to Choose a DC11F Scale

1. Determine the working stroke of your machine.

2. Add 138 mm — this is the total scale length.

3. Ensure space for the protective cover.

4. Select the required signal type (TTL or RS422).

✅ Why Choose Automatic Service Ukraine

• Official Ditron supplier in Ukraine.

• Professional selection of scales for specific machines.

• Warranty and service support.

• Helping modernize equipment cost‑effectively.

Ditron DC11F — the solution for those who demand maximum precision in minimum space. Order now at asu.com.ua!
