Summary:

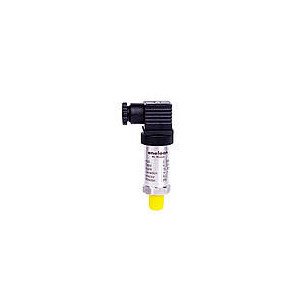

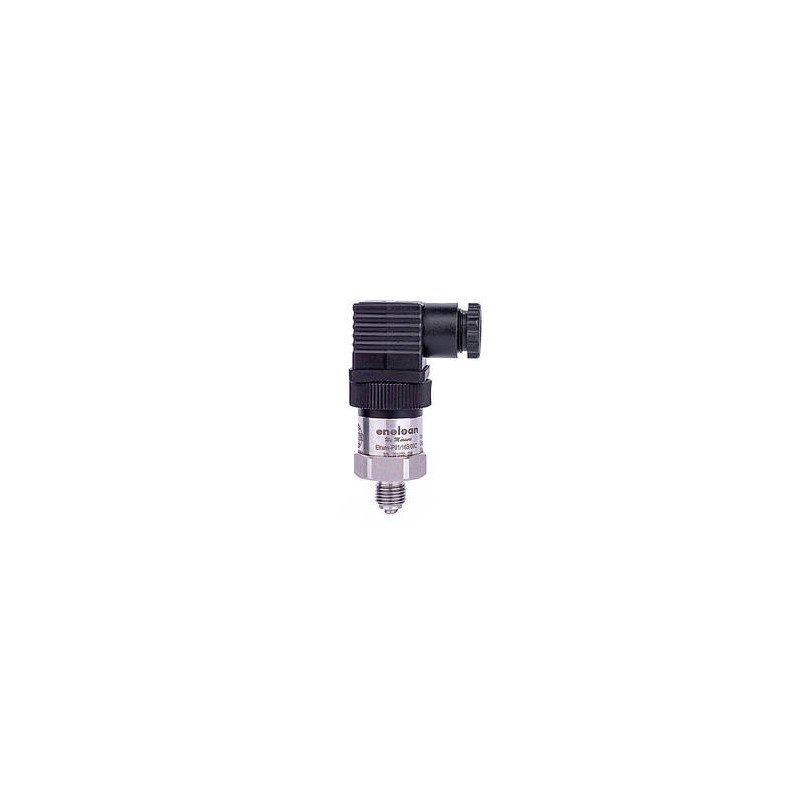

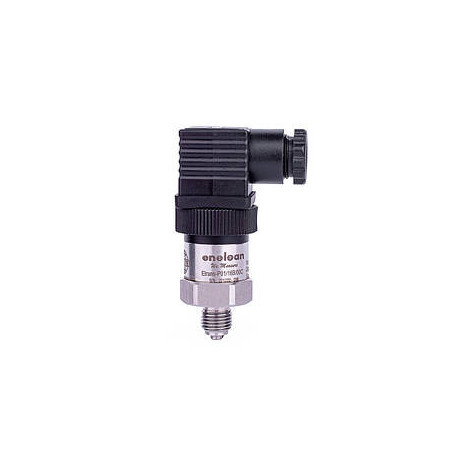

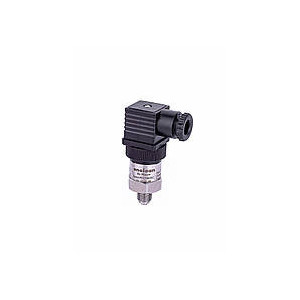

The ETRANS-P01 Pressure Transmitter with a ceramic measuring cell is an economical and reliable solution for measuring pressure in gases, vapours, and liquids across all industrial sectors. The sensor converts the physical pressure value into an industrial standard signal, such as 4...20 mA (for this specific model) or others.
Key Advantages and Applications:
Versatility: Suitable for measuring pressure in gases, vapours, liquids, oils, and refrigerants.
Cost-Effectiveness: Delivers excellent quality at an extremely competitive price.
Compact Design: Features a compact design for easy installation.
Broad Use: Special versions are available for refrigeration and air conditioning, the food industry, mobile working machines, medical gases, and the semiconductor industry.
High Accuracy: Measurement uncertainty is < 0.2 %.
Specific Characteristics of Model ETRANS P-01 (0...1 Bar):
This device is designed for measuring gauge pressure in the range of 0...1 Bar and provides an analog output signal of 4...20 mA. The process connection features a G1/4" thread.
| Attribute | Value |
| Manufacturer | Enelsan |
| Country of Origin | Turkey |
| Controlled Media | Air, Gas, Oil, Liquid, Refrigerants |
| Measured Variable | Pressure (Gauge) |
| Measurement Ranges (Series) | -1 … +1000 bar |
| Measurement Range (This Model) | 0...1 Bar |
| Process Connection (This Model) | G1/4" |
| Measurement Accuracy | < 0.2 % |
| Output Signal | 4...20 mA (This Model). Series also supports 4...20 mA/HART, 0...10 V, 0-5 V, RS485 |
| Process Temperature | -40...+135°C |
| Ambient Temperature | -25 … +85 °C |
| Operating Voltage | 10 … 36 V DC |
| Protection Class | IP65 (This Model), up to IP67 (Series) |
| Response Time | 1 ms |
| Warranty Period | 12 months |
