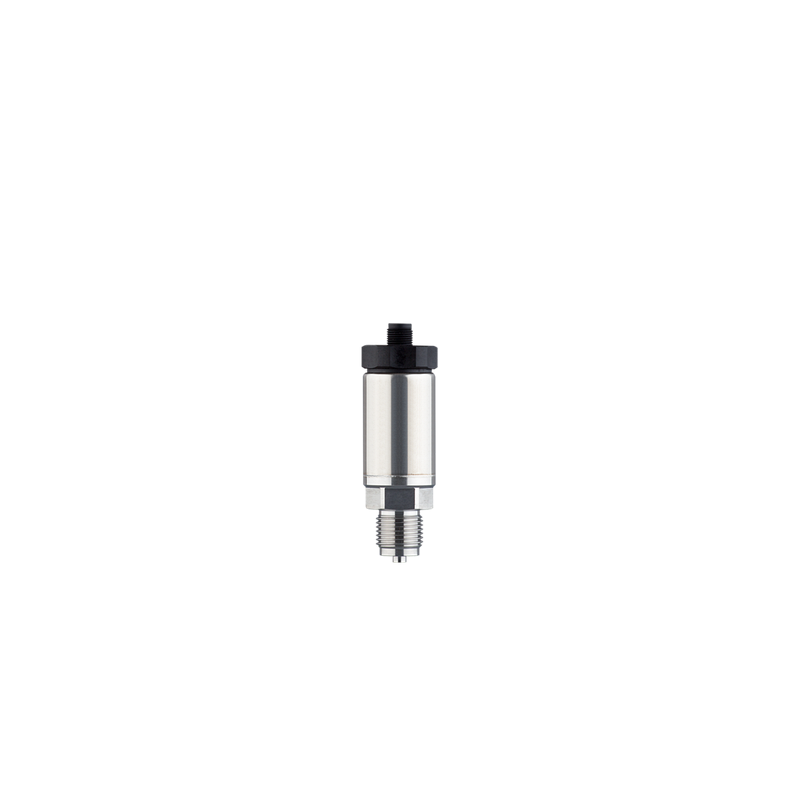

Pressure Transmitter VEGABAR 18

Pressure Transmitter VEGABAR 18

The VEGABAR 18 is a reliable and cost-effective pressure transmitter with a Mini-CERTEC® ceramic measuring cell, designed for pressure measurement in gases, steam, and liquids.
It offers excellent overload and vacuum resistance, making it a practical and durable choice for general industrial applications.

Key Features

• Mini-CERTEC® ceramic measuring cell — extremely robust and wear-resistant

• High resistance to overload, vacuum, and aggressive media

• Economical version with compact installation dimensions

• Easy installation in any mounting position

• Measuring range: 0…25 bar (0…+2500 kPa)

• Accuracy: ≤ 0.5 %

• Output signal: 4…20 mA

Technical Specifications

• Measuring cell: Mini-CERTEC® (ceramic diaphragm)

• Measuring range: 0…25 bar

• Pressure type: gauge

• Output: 4…20 mA

• Process temperature: −40…+100 °C

• Ambient temperature: −40…+70 °C

• Process connection: ≥ G½, ≥ ½ NPT

• Protection class: IP66 / IP67

• Measured media: gases, liquids

• Manufacturer: Vega (Germany)

Working Principle

Under applied pressure, the ceramic diaphragm of the Mini-CERTEC® measuring cell deflects, causing a capacitance change that is converted into a proportional electrical signal.
The built-in temperature sensor continuously monitors process temperature, which can be displayed locally or transmitted via Bluetooth.

Applications

The VEGABAR 10 / 20 / 30 series is used for:

• Measuring pressure and level in liquids, gases, and vapors

• Chemical, food, and energy industries

• Hazardous and hygienic areas

• Integration into automation and monitoring systems

VEGABAR 18 — precise, durable, and compact German-made pressure transmitter designed for dependable performance in modern industrial environments.
