🌐 Ditron DC10F — ENGLISH CONTENT PACK

DC10F
MetGrant

Ditron DC10F Linear Scale | Compact TTL Encoder 5 µm | ASU

₴4,200.00
₴4,200.00 ₴3,500.00 ₴4,200.00 ₴3,500.00
Tax included Tax included Tax excluded Tax included Tax excluded
₴3,500.00 Tax excluded
₴4,200.00 Tax included
₴700.00 Tax
₴3,500.00 Tax excluded
₴700.00 Tax
₴4,200.00 Tax included
  Політика безпеки

(редагувати за допомогою модуля Безпека та гарантії для клієнта)

  Умови доставки

(редагувати за допомогою модуля Безпека та гарантії для клієнта)

  Умови повернення

(редагувати за допомогою модуля Безпека та гарантії для клієнта)

Description

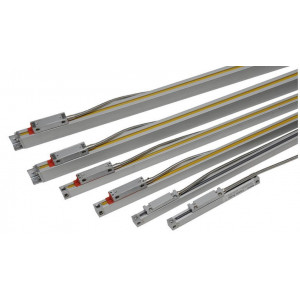

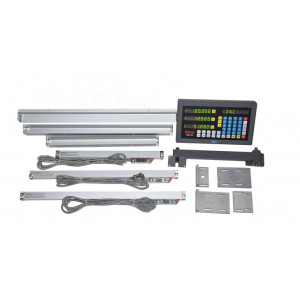

Ditron DC10F is a compact optical linear scale designed for high-precision measurement in space-limited applications. Offers 5 µm resolution and TTL (5V) output. Ideal for grinders, milling machines, and DRO systems. Protected by a robust aluminum housing (IP53).

📄 Full Description (EN):

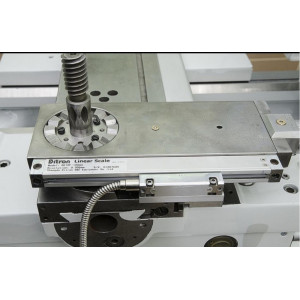

The Ditron DC10F is a precision optical linear scale equipped with an infrared reading head and TTL signal output (5V). Its compact design allows installation on equipment with limited space, making it ideal for surface grinders, coordinate measuring machines, and DRO/CNC systems. The scale is protected by an IP53-rated aluminum housing and supports measuring lengths from 50 mm to 500 mm.

Key Features:

  • Measuring range: 50–500 mm

  • Resolution: 5 µm

  • Signal output: TTL (5V, single-ended)

  • Infrared optical scanning

  • Protection class: IP53

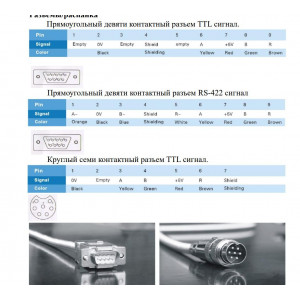

  • Cable: up to 3 m with DB9 connector

  • Operating temperature: 0…45°C

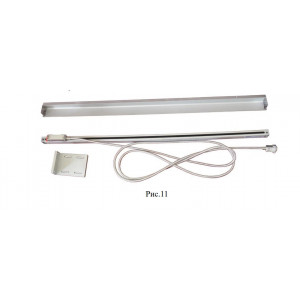

  • Includes mounting brackets and instruction manual (EN/UA)

• 5 ball bearing system

•Designed to make possible insallation on Limited spaces.(eg cross feed on lathes)

•Calibrated by Laster Interferometer,

•Accuracy Guaranteed
Measuring Lengths 50–600 mm
Signal Period 20 µm
Supply Voltage 5V DC
Protection Class IP55

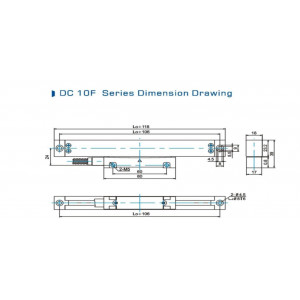

Cross Section 18 × 23 mm

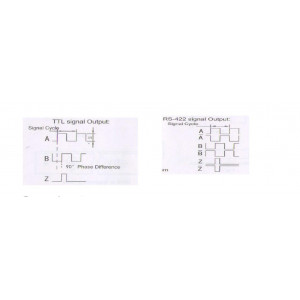

Output Type TTL / RS422
Max Traveling Speed 60 m/min
Accuracy ± 5 µm, 10 µm/m
Resolution 0.1 µm, 0.5 µm, 1 µm, 5 µm, 10 µm
Reference Mark 1 reference mark every 50 mm
Product Details
DC10F
New

Data sheet

Material
Aluminium
IP protection
IP 65
Environment type
Aggressive env.
Signal type
RS‑485 (Modbus RTU)

Specific References

MPN
DC10F
