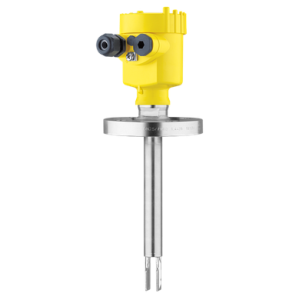

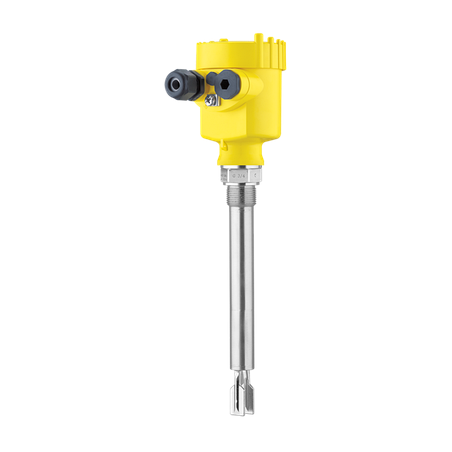

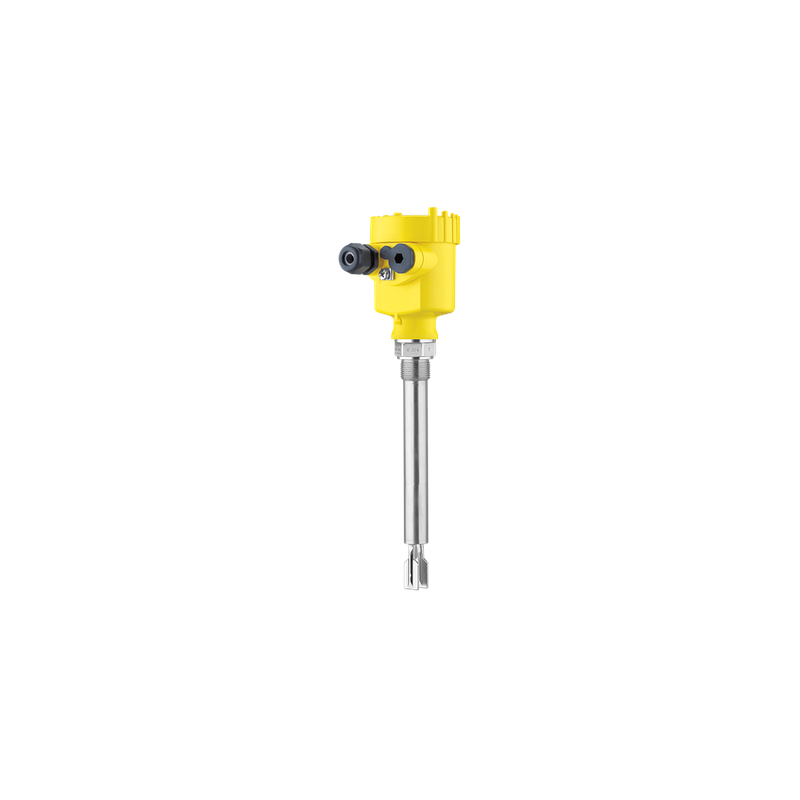

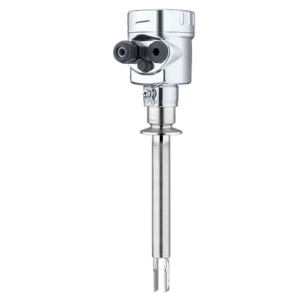

Vibrating Level Switch VEGASWING 63, VEGA
  • Vibrating Level Switch VEGASWING 63, VEGA
  • Vibrating Level Switch VEGASWING 63, VEGA
  • Vibrating Level Switch VEGASWING 63, VEGA

Vibrating Level Switch VEGASWING 63, VEGA

vegaswing-63
VEGA

Vibrating Level Switch VEGASWING 63, VEGA

€1,340.00
Tax included
Quantity
10 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

VEGASWING 63: Liquid Level Control in Deep Vessels

Application:

The VEGASWING 63 is a vibrating level switch featuring an extension tube up to 6 meters, designed for reliable and millimetre-accurate point level signalling of liquids in tall and deep tanks or shafts.

It registers the limit level with high reliability in any mounting position and is used for critical applications:

  • Maximum and minimum level signalling.

  • Overfill protection.

  • Pump dry-run protection.

Features and Benefits:

  • Extended Design: Allows for point level detection at a significant depth (up to 6m).

  • Product Independence: Switching is unaffected by the physical properties of the liquid (density, viscosity, or conductivity).

  • Ready to Use: No setup or complex configuration required during commissioning.

  • Very High Reproducibility of measurement results.

  • Durability: Wear-free and maintenance-free.

  • Advanced Materials: Expanded selection of wetted materials, including Duplex steel, for maximum resistance to corrosive media.

  • Functional Safety: SIL qualification (optional, up to SIL2).


Technical Data

Attribute Value
Manufacturer Vega
Country of Origin Germany
Design With extension tube up to 6 m
Measurement Principle Vibrating (Tuning Fork)
Measured Variable Point Level
Measuring Media Liquids
Process Connection Threads from G¾, ¾ NPT, Flanges from DN 25, 1", hygienic types
Wetted Parts Material 316L, Alloy C22, ECTFE, PFA, Enamel, Alloy 400, Duplex
Process Temperature -50 ... +250 °С (-58 ... +482 °F)
Process Pressure -1 ... +64 bar (-100 ... +6400 kPa)
SIL Qualification Optional, up to SIL2
Product Details
vegaswing-63
10 Items

Data sheet

Composition
Stainless Steel
Environment type
Liquid
IP protection
IP 67
Pressure range
1–10 bar
10-100 bar
Connection method
Threaded

Specific References

MPN
vegaswing-63
