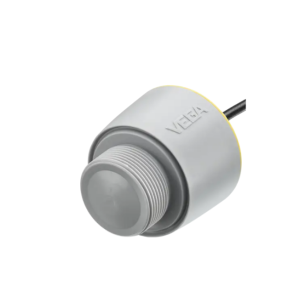

The VEGAPULS C 11 radar level sensor is ideal for all standard applications
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Overview and Application:
The VEGAPULS C 11 is a highly accurate radar level sensor designed as a superior quality replacement for traditional ultrasonic sensors, particularly in water management and wastewater measurement applications.
Its robust, waterproof housing with IP68 protection ensures long-term, maintenance-free operation, especially in harsh environments like underground wells and pump stations. The compact design and axial cable outlet allow for flexible installation.
The sensor can be applied for non-contact level measurement of liquids and for maintenance-free operation in small vessels or containers with bulk solids.
Key Features & Advantages:
| Feature | Benefit |
| High Measurement Accuracy | Up to ±2 mm. |
| Product Independence | Switching point is independent of product properties (pressure or dust have no influence). |
| No Dead Zone | Zero dead zone beneath the sensor (with slightly increased measurement error only in the first 25 cm). |
| Narrow Beam Angle | An 8° beam angle allows use in confined spaces, such as narrow underground shafts. |
| Robust Operation | Accurate measurement even with foam on the surface and resistance to condensation or dust build-up. |
| Noise Immunity | Measurement is independent of ambient noise created during tank filling. |
| Simple Commissioning | Convenient level limit setting without the need to fill or empty the tank/silo. |
| Cost-Effective Upgrade | An inexpensive radar sensor serving as a qualitatively superior replacement for ultrasonic sensors. |
| Flexible Connectivity |
Two-wire 4–20 mA connection, HART, SDI-12, or Modbus, including use in pulse-mode battery-powered stations. |
Measuring Principle (FMCW Radar Technology):
The sensor transmits a frequency-modulated radar signal via the antenna system. The frequency of the signal changes saw-tooth-like. The transmitted signal, reflected by the medium, is received by the antenna as an echo signal with a changing frequency. The difference in frequency between the transmitted and received signals is proportional to the measured distance, thus dependent on the filling level.
| Parameter | Value |
| Measuring Range | up to 8 m (26 ft) |
| Measurement Error | ≤ 2 mm |
| Beam Angle | 8° |
| Measuring Frequency | W-band (80 GHz technology) |
| Output Signal | 4...20 mA/HART, SDI-12, or Modbus/Levelmaster |
| Process Connection | Thread G1½, 1½ NPT, R1½ |
| Mounting Connection | Thread G1, 1 NPT, R1 |
| Process Pressure | -1 to +3 bar (-14.5 to +43.51 psig) |
| Process Temperature | -40 to +80 °C (-40 to +176 °F) |
| Ambient Temperature | -40 to +80 °C (-40 to +176 °F) |
| Power Supply | 12... 35 V DC |
| Protection Degree | IP66/IP68 (3 bar, 24 h) per IEC 60529, Type 4X/6P per UL 5 |

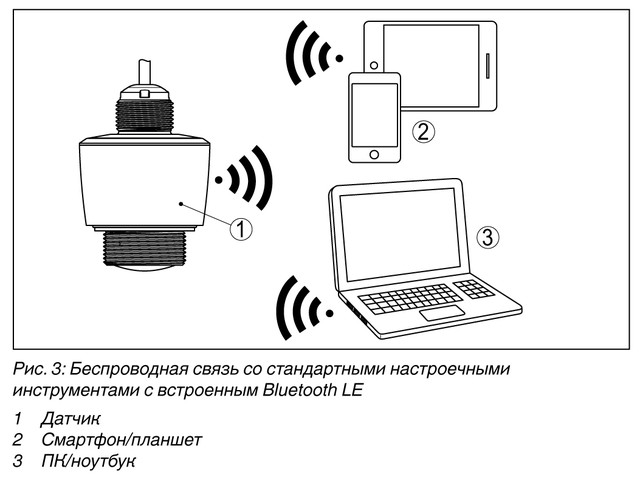

| Wireless Setup | Bluetooth 5.0 (typical communication range 25 m/82 ft) |
| Electronics Options | Two-wire 4...20 mA/HART, digital with SDI-12, or digital with Modbus/Levelmaster. |
The VEGAPULS C 11 is suitable for a wide range of applications, demonstrating reliability where traditional sensors fail:
Wastewater Treatment: Level control in sewage settlement tanks, pump stations, and sewer overflow chambers.
Water Management: Water level measurement in open channels and height measurement in general.
Food Processing: Level measurement in rotational filling machines for cans (e.g., tomato paste) to monitor the level of product on the rotating plate.
Process Control: Measurement and signalling of level in waste containers (e.g., in steam peeling machines), where the sensor must be resistant to acoustic interference and heavy dust.
