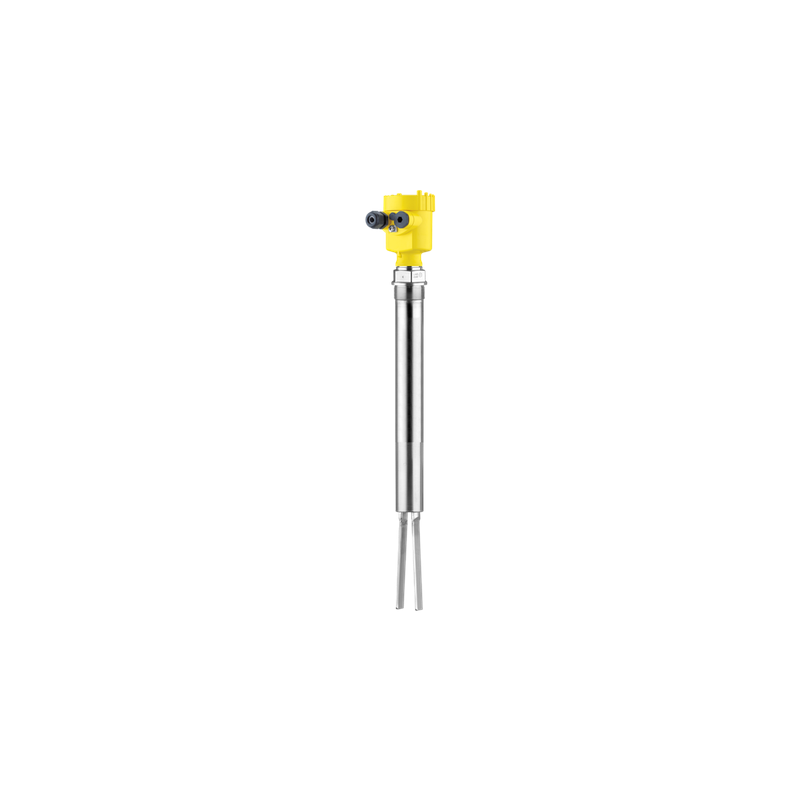

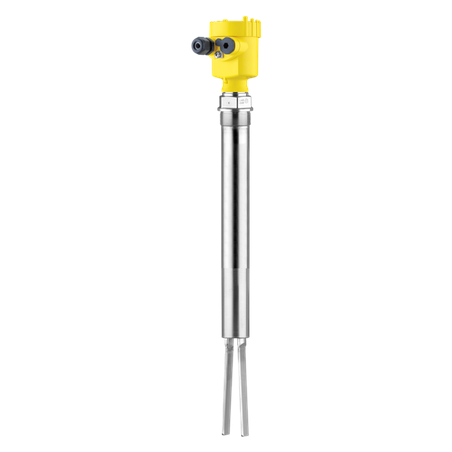

Vibrating Level Switch VEGAWAVE 63

VEGAWAVE 63: Point Level Control for Fine Bulk Solids with Extension Tube

Application:

The VEGAWAVE 63 is a vibrating level switch designed for the reliable and accurate point level signalling of powdered and fine-grained bulk solids. This model is equipped with an extension tube up to 6 meters, allowing for level control in deep vessels or at a distance from the mounting point.

The position of the switching point is fixed by the length of the extension tube, ensuring high accuracy and reproducibility. The vibrating fork is ideal for use in challenging conditions:

• Sticky and abrasive products.

• Low-density bulk solids (ensuring reliable switching).

The sensor is used for minimum or maximum level signalling.

Features and Benefits:

• Extended Design: Measures level at a distance of up to 6 meters.

• Simple Installation: Fast and simple installation without the need for product calibration.

• Reliability: Reliable function, as the switching point is completely independent of the product's physical properties (density, moisture).

• Cost-Effective: Low operating and maintenance costs due to its robust, wear-free design.

• Functional Safety: SIL qualification (optional, up to SIL2).

Technical Data
